Scuderia Ferrari SF70H

A place to discuss the characteristics of the cars in Formula One, both current as well as historical. Laptimes, driver worshipping and team chatter do not belong here.
Post Reply

User avatar
Morteza
2308
Joined: 10 Feb 2010, 18:23
Location: Bushehr, Iran

Re: Scuderia Ferrari SF70H

Post




Via AMuS and @SokolimOkiem
Last edited by Morteza on 20 Oct 2017, 00:58, edited 1 time in total.
"A fool thinks himself to be wise, but a wise man knows himself to be a fool."~William Shakespeare



f300v10
185
Joined: 22 Mar 2012, 17:13

Re: Scuderia Ferrari SF70H

Post

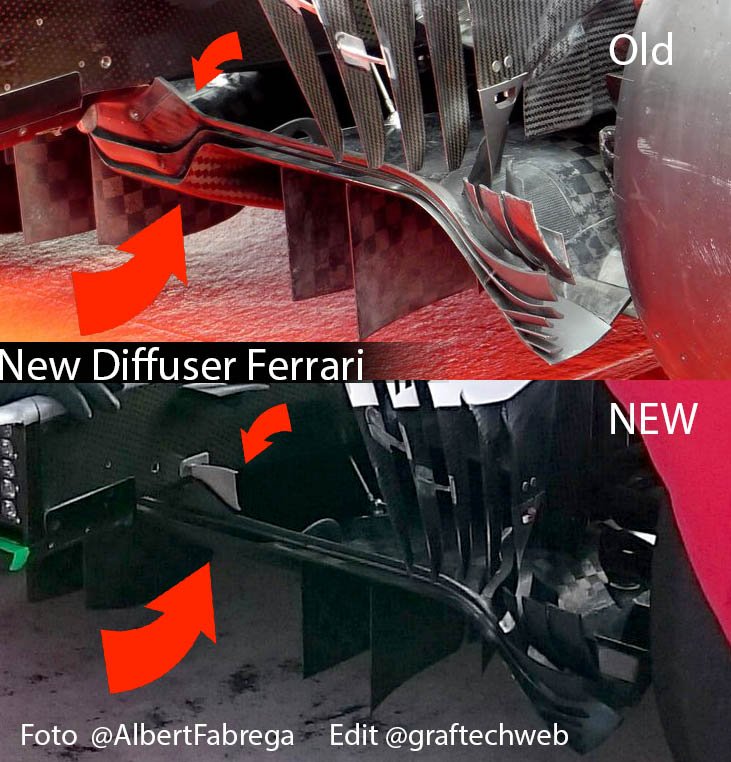

AMUS closeup of the crash structure/diffusor. You can see the center diffusor section still has the tunnel, but it now blends out completely at the trailing edge of the diffusor.


Sevach
1038
Joined: 07 Jun 2012, 17:00

Re: Scuderia Ferrari SF70H

Post

Monkey seats have been removed, but the double T-wing makes a comeback...

User avatar
F1NAC
163
Joined: 31 Mar 2013, 22:35

Re: Scuderia Ferrari SF70H

Post

Bloody hell when seeing this picture, I'm amazed with that gap between tyre and floor. Thinner than paper =P~


User avatar
turbof1
Moderator
Joined: 19 Jul 2012, 21:36
Location: MountDoom CFD Matrix

Re: Scuderia Ferrari SF70H

Post

Congratulations, Ferrari. My brain is unable to properly process the left image. It is that complex. How in earth are they able to produce these pieces out of carbon fibre.

Interesting that after all these years, team are still dedicating that much time, resources and alterations to such a local area of the car. Given we have so many areas of the car's bodywork opened up this year for development, you'd expect development of the tyre squirt slot would drop to the backburner, but nope.
#AeroFrodo

User avatar
Vanja #66
1304
Joined: 19 Mar 2012, 16:38
Contact:

Re: Scuderia Ferrari SF70H

Post

That's some black magic right there, that diffuser is crazy. Hard work on the chassis, we haven't seen this from Ferrari in a good long while.
And they call it a stall. A STALL!

#Aerogimli
#DwarvesAreNaturalSprinters
#BlessYouLaddie

User avatar
MtthsMlw
1033
Joined: 12 Jul 2017, 18:38
Location: Germany

Re: Scuderia Ferrari SF70H

Post


User avatar
ScrewCaptain27
577
Joined: 31 Jan 2017, 01:13
Location: Udine, Italy

Re: Scuderia Ferrari SF70H

Post

This photo allows us to look at the sidepod internals from the front:
"Stupid people do stupid things. Smart people outsmart each other, then themselves."
- Serj Tankian

tpe
tpe
-4
Joined: 03 Feb 2006, 00:24
Location: Greece
Contact:

Re: Scuderia Ferrari SF70H

Post

It would be really interesting to see the rear suspension.
It looks like they moved up the pullrod.

User avatar
Morteza
2308
Joined: 10 Feb 2010, 18:23
Location: Bushehr, Iran

Re: Scuderia Ferrari SF70H

Post


"A fool thinks himself to be wise, but a wise man knows himself to be a fool."~William Shakespeare

f1316
78
Joined: 22 Feb 2012, 18:36

Re: Scuderia Ferrari SF70H

Post

So that’s the old one again.

Wondering if they’re doing a back to back.

f300v10
185
Joined: 22 Mar 2012, 17:13

Re: Scuderia Ferrari SF70H

Post

First clear shot of the USGP version of the diffusor (via AMUS)


Post Reply
