F1 2015 Car Comparison Thread

A place to discuss the characteristics of the cars in Formula One, both current as well as historical. Laptimes, driver worshipping and team chatter do not belong here.
User avatar
hollus
Moderator
Joined: 29 Mar 2009, 01:21
Location: Copenhagen, Denmark

F1 2015 Car Comparison Thread

Post

We have to start somewhere...

Exhaust diameter:

Measuring the exhaust diameters of the 2015 cars. As last year, the method is to pick pictures approximately from behind where the perspective effects are limited. In particular I am (mostly) taking pics where the apparent front tire track width is smaller by half a rear tire or less. And then I count the exhaust diameter in pixels and compare it with the bolt to bolt distance in the light in the rear crash structure, which I measured to be 71.8mm last year. The exhaust pipe diameter, being slightly further away from the camera than the light, will be underestimated, but not by much.

Pics and results:
Mercedes engines:
Mercedes: 98.1mm http://i.imgur.com/z5QUHi1.jpg
Williams: 99.6 mm http://www.f1fanatic.co.uk/wp-content/u ... t-mald.jpg
Force India:
Lotus: 93.9 mm http://www.f1fanatic.co.uk/wp-content/u ... nasr-7.jpg (Not the best picture, a shiny right edge suggests at least a couple of pixels more, which would make the diameter close to 98mm).
Ferrari engines:
Ferrari: 98.6 mm http://formula1.com/wi/enlarge/sutton/2 ... 1fe589.jpg
Sauber: 99.0 mm http://www.f1fanatic.co.uk/wp-content/u ... asr-10.jpg
Renault engines:
Red Bull: 95.7 mm http://images.adrivo.com/images/950/q_8 ... 646132.jpg
Toro Rosso: 101.2 mm http://i.imgur.com/2sBTRkV.jpg
Honda engine:
McLaren: 99.3 mm http://images.adrivo.com/images/950/q_8 ... 646506.jpg

The minimum diameter allowed is 97.72mm (7500mm2). I am measuring from shiny pixel to shiny pixel, which would mean measuring something larger than the internal diameter, which likely is what the rules mean.
Overall, and accounting for likely measuring errors, they all seem to be running the smallest exhaust pipe allowed by the rules. Red Bull and Toro Rosso are difficult to measure, I'll update when better pictures surface and if they suggest anything other than minimum diameter, but the average of their measurements is bang-on on every one elses'.

For comparison, last years' Ferrari was running a much larger diameter, about 25% larger http://www.f1technical.net/forum/viewto ... 80#p533980

Edit: 97.9 mm for the Toro Rossos: http://4.bp.blogspot.com/-HjCWTJvxg9I/V ... 3fe134.jpg
Rivals, not enemies.

User avatar
PlatinumZealot
550
Joined: 12 Jun 2008, 03:45

Re: F1 2015 Car Comparison Thread

Post

Hmm everybody is probably 100mm. They would by the tube in that size anyway.
๐Ÿ–๏ธโœŒ๏ธโ˜๏ธ๐Ÿ‘€๐Ÿ‘Œโœ๏ธ๐ŸŽ๐Ÿ†๐Ÿ™

Sevach
1043
Joined: 07 Jun 2012, 17:00

Re: F1 2015 Car Comparison Thread

Post

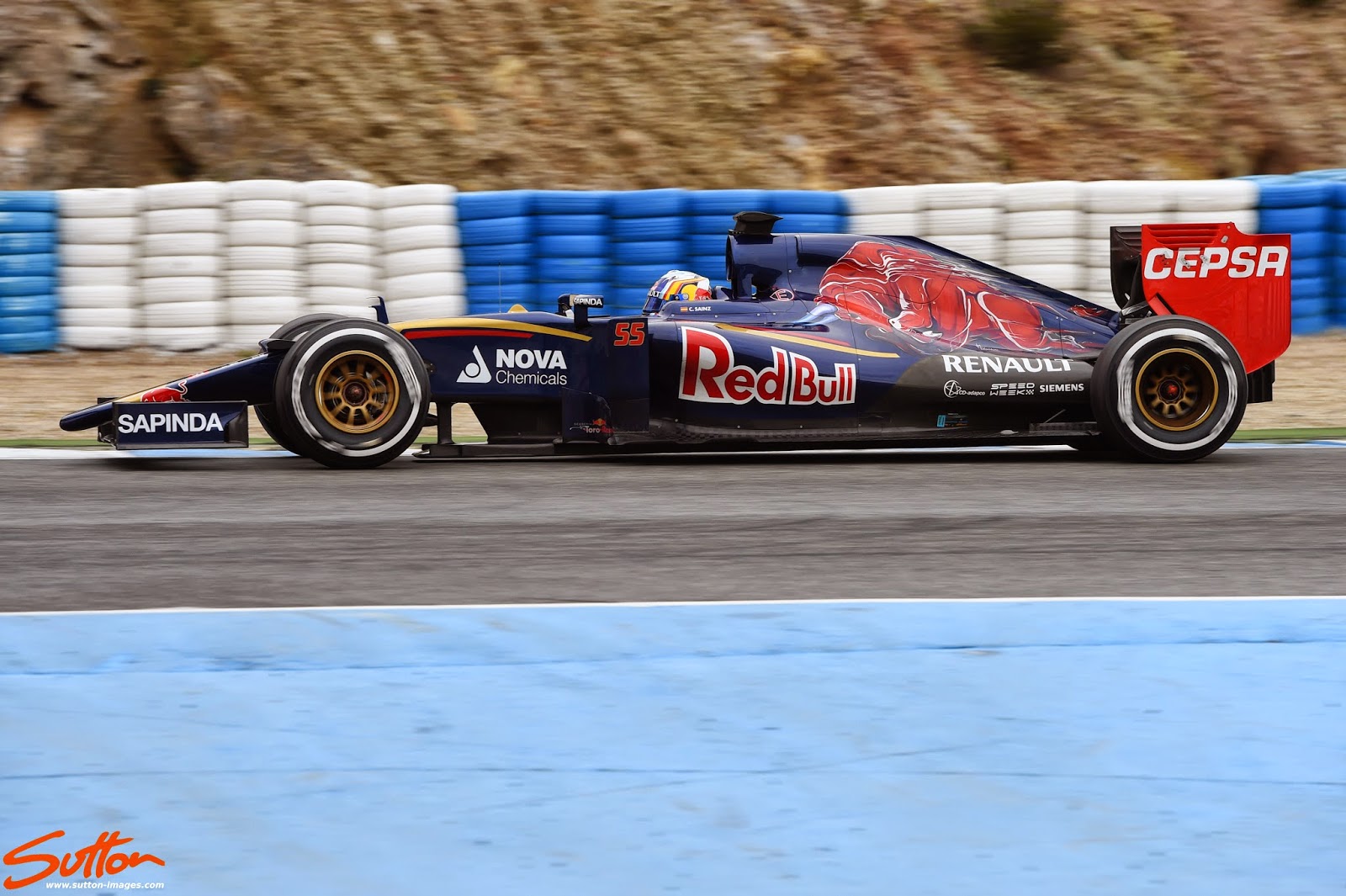

All 3 running big rake angles but RBR still takes the cake.

Facts Only
188
Joined: 03 Jul 2014, 10:25

Re: F1 2015 Car Comparison Thread

Post

The tailpipe diameter will be specified by the engine suppliers. All of the Merc' tailpipes will be the same as will all the Ferrari tailpipes and all the Renault Tailpipes. I would actually use the tailpipes as the datum for measuring other parts as the position is pretty tightly controlled (see rule 5.8 )

What it can tell us is that the end diameter of the turbine wheel is less than the min tailpipe diameter as having an increasing diameter along the tailpipe can cause problems with efficiency of the gas flow and turbine wheel so they will minimise the change in diameter along the pipe and it will curve as gently as possible.
Last edited by Facts Only on 05 Feb 2015, 10:34, edited 1 time in total.
"A pretentious quote taken out of context to make me look deep" - Some old racing driver

zioture
496
Joined: 12 Feb 2013, 12:46
Location: Italy
Contact:

Re: F1 2015 Car Comparison Thread

Post

Comparison Noise Pu Honda VS Ferrari





Aaronque
34
Joined: 15 Oct 2013, 12:42

Re: F1 2015 Car Comparison Thread

Post


Sevach
1043
Joined: 07 Jun 2012, 17:00

Re: F1 2015 Car Comparison Thread

Post



Sevach
1043
Joined: 07 Jun 2012, 17:00

Re: F1 2015 Car Comparison Thread

Post








Doesn't seem quite lined up enough for wheelbase comparisons... but still.

Sevach
1043
Joined: 07 Jun 2012, 17:00

Re: F1 2015 Car Comparison Thread

Post





speedy56
0
Joined: 05 Feb 2013, 19:40

Re: F1 2015 Car Comparison Thread

Post

Tricky, but similar angle

There is some rake in that Ferrari

User avatar
Blackout
1562
Joined: 09 Feb 2010, 04:12

Re: F1 2015 Car Comparison Thread

Post


Just_a_fan
591
Joined: 31 Jan 2010, 20:37

Re: F1 2015 Car Comparison Thread

Post

From that angle the McLaren really does have shrink wrapped bodywork. I thought it was just Ron being Ron but he's right - that is tight! If they can get the PU working I think their new aero designer could start to turn them around.
If you are more fortunate than others, build a larger table not a taller fence.

SRK
SRK
24
Joined: 20 Jan 2011, 19:20

Re: F1 2015 Car Comparison Thread

Post


User avatar
Godius
186
Joined: 02 Mar 2013, 12:49
Location: NL

Re: F1 2015 Car Comparison Thread

Post

Thanks for this comparison. That VJM08 looks very draggy around the exhaust / crash impact structure area, compared to other cars.
