Re: Haas VF-24

Post

Engine air intake expanded v last year, with supplementary channels to either side of primary. Looks like feeding more centre line cooling / flow facility.

Is this balance consequence of reduction in lower sidepod volume in facilitating that aero preference?

Likely Ferrari too as last year airbox architecture looked mirrored between the two.

User avatar
organic
920
Joined: Sat Jan 08, 2022 1:24 am
Location: Cambridge, UK

Re: Haas VF-24

Post

Farnborough wrote:
Sun Feb 11, 2024 7:25 pm
Engine air intake expanded v last year, with supplementary channels to either side of primary. Looks like feeding more centre line cooling / flow facility.

Is this balance consequence of reduction in lower sidepod volume in facilitating that aero preference?

Likely Ferrari too as last year airbox architecture looked mirrored between the two.
Formu1a uno claims Ferrari will retain the triangular shape with no 'ears' as they're referred to

User avatar
Vanja #66
1245
Joined: Mon Mar 19, 2012 3:38 pm

Re: Haas VF-24

Post

The difference between C44 and VF-24 airbox is clear, Sauber has been using airbox for gearbox oil cooler for a long time. VF-24 ears are very small and likely just precautionary auxiliary inlets for some internal flow regulation.
And they call it a stall. A STALL!

#Aerogimli
#DwarvesAreNaturalSprinters
#BlessYouLaddie

User avatar
Blackout
1550
Joined: Tue Feb 09, 2010 3:12 am

Re: Haas VF-24

Post

Not just the gearbox. Sauber's centerline cooling systems are usually big and compound to cool many systems, including intercooler water, ERS, hydraulics etc.
It is Haas who seems to use small centerline rads for small things like the gbox in the last seasons.
.
ali623 wrote:
Sun Feb 11, 2024 6:55 pm
Rear suspensions seem to retain the same usual concept (pullrod and inverted lower wishbones)

User avatar
scuderiabrandon
65
Joined: Sat Feb 11, 2023 7:42 am

Re: Haas VF-24

Post

Blackout wrote:
Sun Feb 11, 2024 10:02 pm
Not just the gearbox. Sauber's centerline cooling systems are usually big and compound to cool many systems, including intercooler water, ERS, hydraulics etc.
It is Haas who seems to use small centerline rads for small things like the gbox in the last seasons.
.
Rear suspensions seem to retain the same usual concept (pullrod and inverted lower wishbones)
The most rearward member of the lower wishbone looks like it has been moved up in relation the the forward member + driveshaft. Moving it further away from the upper surface of the diffuser. This angle and the blur does not make me very confident in this claim so I'll avoid having strong opinions regarding it until we have more conclusive images.

Hopefully some still shots of the SF24 on Tuesday can give us more info.


Venturiation
Venturiation
94
Joined: Wed Jan 04, 2023 6:48 pm

Re: Haas VF-24

Post

Thread


emp
emp
1
Joined: Sun Feb 08, 2015 2:57 pm

Re: Haas VF-24

Post

https://www.youtube.com/watch?v=kc6MAB4 ... HaasF1Team

First video on track with the Haas.

User avatar
organic
920
Joined: Sat Jan 08, 2022 1:24 am
Location: Cambridge, UK

Re: Haas VF-24

Post

emp wrote:
Tue Feb 20, 2024 5:31 pm
https://www.youtube.com/watch?v=kc6MAB4 ... HaasF1Team

First video on track with the Haas.
The bargeboard (outboard floor fence) is extremely wobbly/bendy. Will need reinforcement as is surely not desirable

Also on Haas' website it lists the engine specs as the 066/10 which was Ferrari's engine last year and the 2024 engine being the 066/12. Just a mistake surely


User avatar
organic
920
Joined: Sat Jan 08, 2022 1:24 am
Location: Cambridge, UK

Re: Haas VF-24

Post

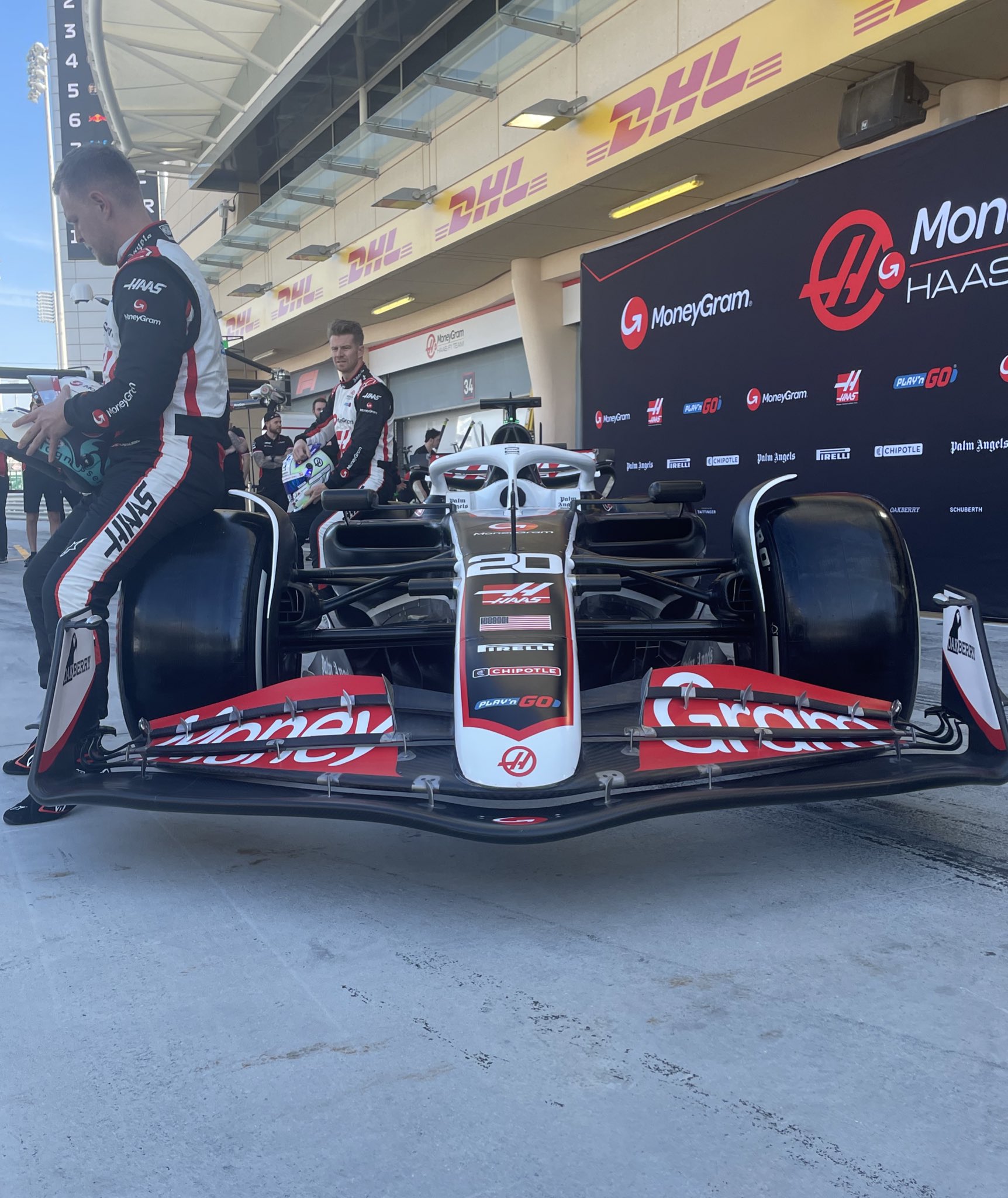

Haas VF-24 for testing

📸 Giuliano Duchessa



📸 Giorgio Piola


📸 Giorgio Piola
