Red Bull RB19

A place to discuss the characteristics of the cars in Formula One, both current as well as historical. Laptimes, driver worshipping and team chatter do not belong here.
AR3-GP
AR3-GP
311
Joined: Tue Jul 06, 2021 12:22 am

Re: Red Bull RB19

Post

Yep, I agree.

User avatar
mwillems
21
Joined: Sun Sep 04, 2016 9:11 pm

Re: Red Bull RB19

Post

Give a man a fire, and he will be warm for a night.
Set a man on fire, and he will be warm for the rest of his life.

User avatar
organic
931
Joined: Sat Jan 08, 2022 1:24 am
Location: Cambridge, UK

Re: Red Bull RB19

Post

Have wanted to see this angle of the floor edge wing for a while

📸Motorsport-total



KimiRai
KimiRai
157
Joined: Wed Aug 10, 2022 7:08 pm

Re: Red Bull RB19

Post

F1 | Red Bull: micro extractor is another RB19 secret
The development of the RB19 has been at a standstill for some time now, as Adrian Newey's attention is entirely focused on next year's single-seater, but the car from Milton Keynes continues to conceal some very interesting technical solutions that testify to the thoroughness with which the world champion team manages to maintain an advantage over its rivals. Here is the rear diffuser that adopts a novel interpretation in the trailing edge that is already under the watchful eye of rivals.

The Red Bull is a car that still holds secrets, even though we are three races away from the end of the 2023 season. The development of the RB19 has been at a standstill for some time, as Adrian Newey has turned all attentions to next year's single-seater that he is working on with the Milton Keynes engineering department.

Yet the expert eye of Giorgio Piola manages to catch details that are difficult to photograph because when the car is mounted they are punctually covered by other elements that conceal their view. We're talking about an evolution on the bottom that wasn't there when Sergio Perez's RB19 was lifted by a crane after a crash in qualifying at the Monaco GP, showing all the... nudity under the pavement. The images that had been taken had provided a good opportunity for the rivals to see in which direction Red Bull had gone, allowing the other teams to gradually move closer to a car that, however, remained dominant.

The staff headed by Pierre Waché has for the last few races introduced a double slope in the rear extractor that can be seen in the trailing edge of the diffuser. In the larger circle of the drawing you can see the lower part of the bottom, while in the smaller circle you can see the same modification observed from above.

Newey, in essence, has 'invented' a second micro extractor in each of the two channels on either side of the deformable gearbox structure. One wonders what the purpose of this solution, which will certainly become an object of study for other teams, is. It is a perfectly legal modification because it falls within the regulatory volumes set by the FIA. It is likely to help create a load variation along the arc of the diffuser in order to be more efficient: there is less "spooning" at the area where the beam wing has the longest chord, and more thrust where the lower wing has a shorter chord. The attempt to make the work of the extractor, beam wing and rear wing more synergic is evident, with an integration between the parts that is the result of accurate micro-aerodynamic work.

Another very interesting detail of the RB19 is the rear brake duct. Giorgio Piola's drawing shows us with the red arrows the three outlets for the hot air generated by the disc and calipers, but it also highlights two small flaps shown by the two blue arrows, which are angled downwards and direct the flow towards an element of the beam wing. In that area, however, other teams have preferred to insert a cluster of mini flaps in sequence, but directing the flows upwards to generate a local vertical load. Newey, evidently, believes he gains more benefit from a combined effect with the lower wing, having less drag.
https://it.motorsport.com/f1/news/f1-re ... /10543587/




User avatar
Stu
Moderator
Joined: Sat Nov 02, 2019 9:05 am
Location: Norfolk, UK

Re: Red Bull RB19

Post

organic wrote:
Sun Nov 05, 2023 2:11 pm
Have wanted to see this angle of the floor edge wing for a while

📸Motorsport-total

https://i.imgur.com/XzcWFEP.jpeg

https://i.imgur.com/L7BG6OJ.jpeg
That is nuts! The level of detailing is second to none….
The most first exit is almost pointed forward (notice the big curl underneath as well), the second two exits are also staged (not parallel).
That is all going to reduce the speed at which the vortex starts to ‘roll-up’ and then maintain it for longer.
Is this how they keep the car aerodynamically balanced from low to high speed?
Perspective - Understanding that sometimes the truths we cling to depend greatly on our own point of view.

KimiRai
KimiRai
157
Joined: Wed Aug 10, 2022 7:08 pm

Re: Red Bull RB19

Post

(Italian) Red Bull: mini generatori di vortice sotto alla "scimitarra"

https://it.motorsport.com/f1/news/f1-re ... /10545916/



ThijsMuis
ThijsMuis
5
Joined: Wed Sep 20, 2023 9:53 am

Re: Red Bull RB19

Post


User avatar
lio007
312
Joined: Mon Jan 28, 2013 10:03 pm
Location: Austria

Re: Red Bull RB19

Post

Nice picture of the broken front wing on Max's car in today's race:

User avatar
Juzh
160
Joined: Sat Oct 06, 2012 7:45 am

Re: Red Bull RB19

Post

that's more damage than Lec had in mexico even. pretty amazing he managed to pull out a win with that

ThijsMuis
ThijsMuis
5
Joined: Wed Sep 20, 2023 9:53 am

Re: Red Bull RB19

Post


AR3-GP
AR3-GP
311
Joined: Tue Jul 06, 2021 12:22 am

Re: Red Bull RB19

Post

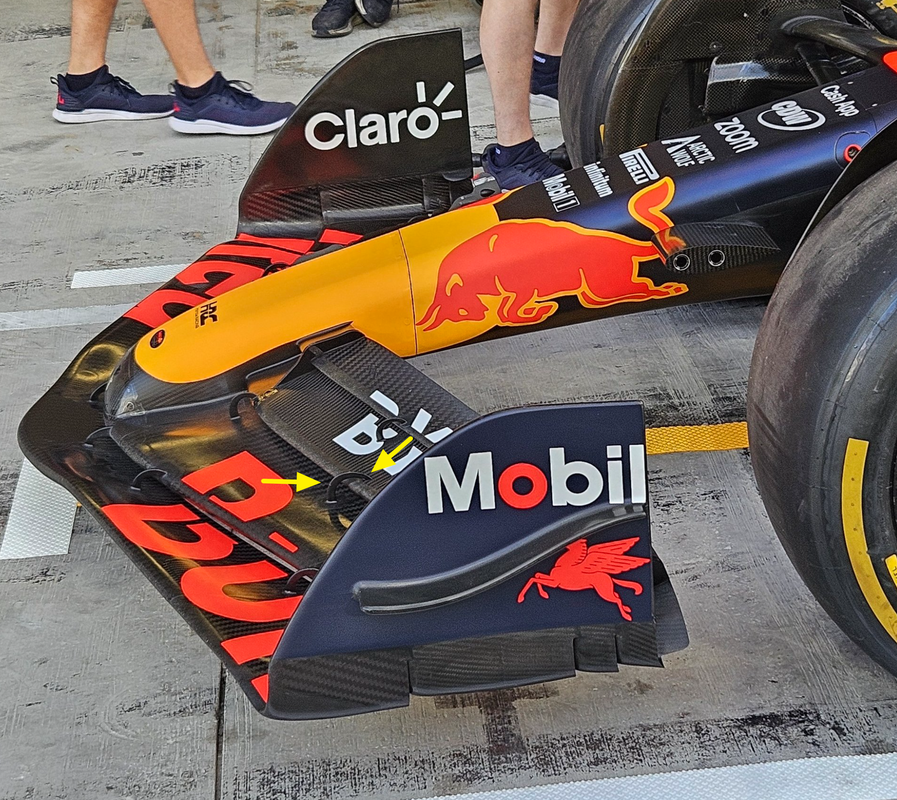

Unsure if this is an optical illusion but this connection seems rigid? How can flap pivot if so?


User avatar
Vanja #66
1249
Joined: Mon Mar 19, 2012 3:38 pm

Re: Red Bull RB19

Post

AR3-GP wrote:
Thu Nov 23, 2023 4:00 pm
Unsure if this is an optical illusion but this connection seems rigid? How can flap pivot if so?

https://i.postimg.cc/6QcSPPNn/image.png
The connection might be fairly rigid, but the bracket itself is not :wink:
And they call it a stall. A STALL!

#Aerogimli
#DwarvesAreNaturalSprinters
#BlessYouLaddie

User avatar
organic
931
Joined: Sat Jan 08, 2022 1:24 am
Location: Cambridge, UK

Re: Red Bull RB19

Post

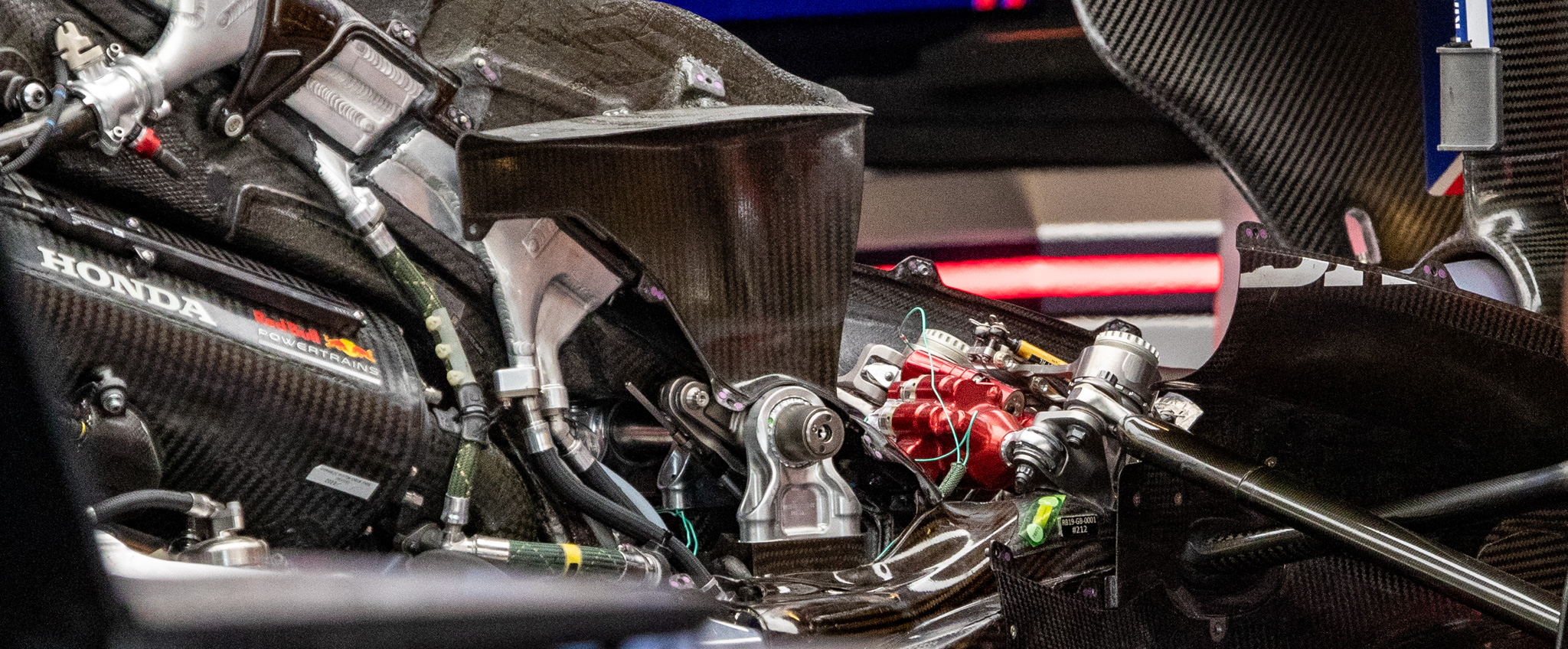

Xavier Gazquez 📸



Henk_v
Henk_v
78
Joined: Thu Feb 24, 2022 12:41 pm

Re: Red Bull RB19

Post

organic wrote:
Fri Nov 24, 2023 10:04 am
Xavier Gazquez 📸

https://pbs.twimg.com/media/F_r2o2hXIAE ... &name=orig

I ma surprised by the amount of "tech" in the rear of the floor. Quite a bit going on there....

User avatar
organic
931
Joined: Sat Jan 08, 2022 1:24 am
Location: Cambridge, UK

Re: Red Bull RB19

Post

Henk_v wrote:
Fri Nov 24, 2023 10:19 am
organic wrote:
Fri Nov 24, 2023 10:04 am
Xavier Gazquez 📸

https://pbs.twimg.com/media/F_r2o2hXIAE ... &name=orig

I ma surprised by the amount of "tech" in the rear of the floor. Quite a bit going on there....
The floor is low down so a good place to put stuff
