Mercedes AMG F1 W09 EQ Power+

Post

This is the Mercedes AMG F1 W09 EQ Power+ offical car thread.

Please discuss ONLY technical items of this car, and refrain from speculation.

General discussion about the team, its drivers and performance can be posted in the team thread.

Livery Talk also belongs in the Team Thread. forum/viewtopic.php?f=15&t=26885
turbof1 wrote: YOU SHALL NOT......STALLLLL!!!
#aerogollum

User avatar
oetger
17
Joined: Tue Dec 24, 2013 9:17 am
Location: NL

Re: Mercedes W09 Speculation Thread

Post


Manoah2u
Manoah2u
397
Joined: Sun Feb 24, 2013 1:07 pm

Re: Mercedes W09 Speculation Thread

Post

some shapes going on in the halo.
bargeboards looking interesting.
airbox too.

nose is surprisingly sponor-empty and clean.
evolution from w08, as expected and logical.

will still kick **s
Dumpster sounds so much more classy. It's the diamond of the cesspools.

User avatar
Holm86
210
Joined: Wed Feb 10, 2010 2:37 am
Location: Copenhagen, Denmark

Re: Mercedes W09 Speculation Thread

Post

Cape is still present, looks very much like the W08 at this point. I suspect its a very simpel launch spec.
Wheel design looks new too

Sevach
Sevach
838
Joined: Thu Jun 07, 2012 4:00 pm

Re: Mercedes W09 Speculation Thread

Post

Sidepods are more rounded RedBull like vs the "muscular" ones from last year.


krizalid1001
krizalid1001
24
Joined: Mon Jan 23, 2012 5:42 pm

Re: Mercedes W09 Speculation Thread

Post

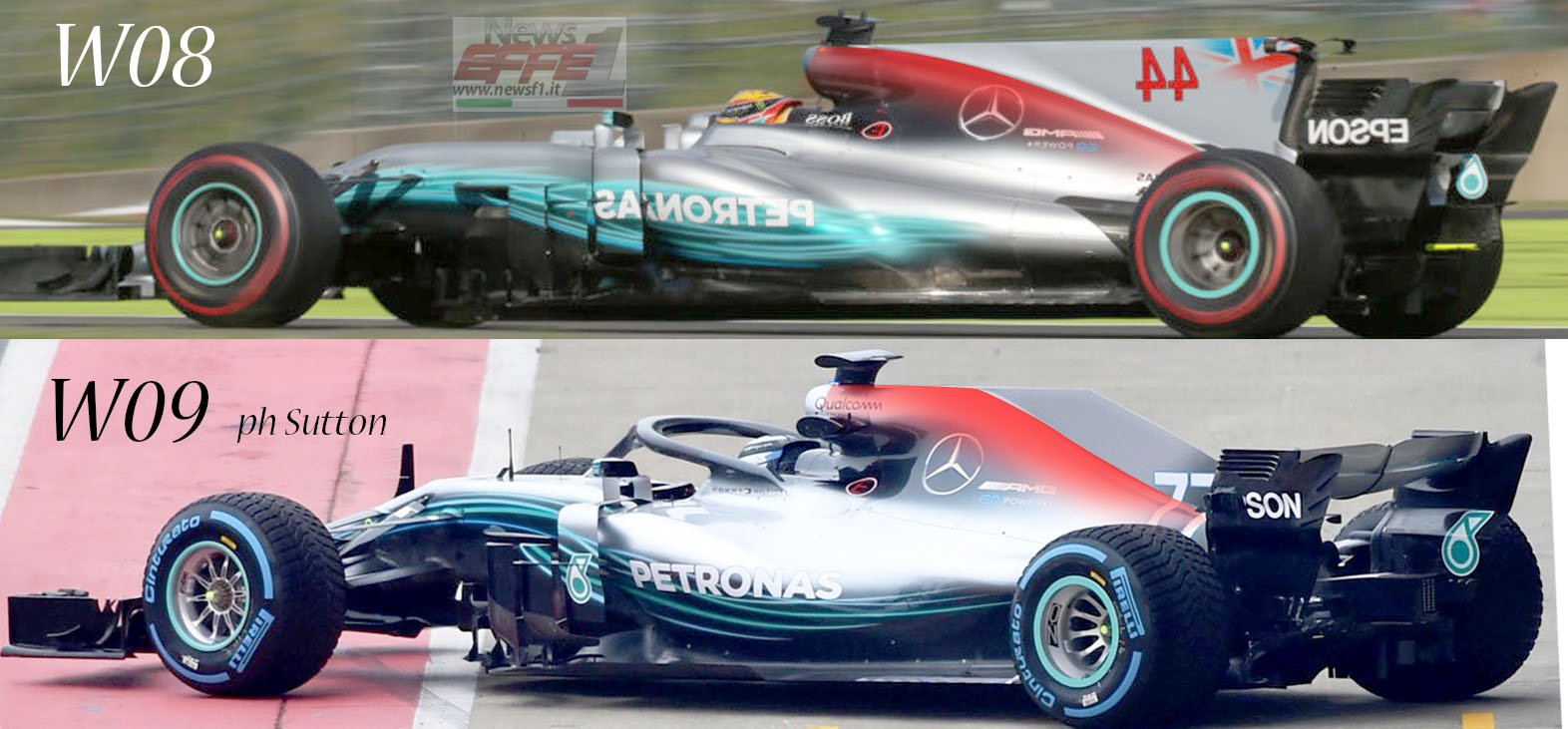

W09


W08


From a front view, the cars seems alomost the same. Note the 4 stream channels inside the W09's airbox.

User avatar
dren
282
Joined: Wed Mar 03, 2010 1:14 pm

Re: Mercedes W09 Speculation Thread

Post

There is a lower T wing. You can see it on the right side of this picture:
Honda!

User avatar
Morteza
2017
Joined: Wed Feb 10, 2010 5:23 pm
Location: Bushehr, Iran

Re: Mercedes W09 Speculation Thread

Post

"A fool thinks himself to be wise, but a wise man knows himself to be a fool."~William Shakespeare

User avatar
Morteza
2017
Joined: Wed Feb 10, 2010 5:23 pm
Location: Bushehr, Iran

Re: Mercedes W09 Speculation Thread

Post


Via @SoyMotor

Mini monkey seat
Front suspension

Via @techF1LES
Last edited by Morteza on Thu Feb 22, 2018 12:43 pm, edited 5 times in total.
"A fool thinks himself to be wise, but a wise man knows himself to be a fool."~William Shakespeare

User avatar
jagunx51
84
Joined: Sun Feb 23, 2014 11:06 am

Re: Mercedes AMG F1 W09 EQ Power+

Post

how to put twitter as video ?? :?:

[media]https://twitter.com/MercedesAMGF1/statu ... 1767815170[/media]

Edit Thunder: Check the "Media" Button on the right side. Fixed the Link.
............!!!!

User avatar
CBeck113
104
Joined: Sun Feb 17, 2013 6:43 pm
Location: Regensburg, Germany

Re: Mercedes AMG F1 W09 EQ Power+

Post

They mounted the front suspension backwards :D
But in all seriousness, that is not a naturally stable geometry - you usually drag the wheel behind you. I can't wait for the driver feedback on this, I can imagine the setup of the car to be very difficult. Otherwise a very nice evolution, they are making the most from their investment leading into the new engine formula.
“Strange women lying in ponds distributing swords is no basis for a system of government. Supreme executive power derives from a mandate from the masses, not from some farcical aquatic ceremony!” Monty Python and the Holy Grail

User avatar
zioture
392
Joined: Tue Feb 12, 2013 11:46 am
Location: Italy

Re: Mercedes AMG F1 W09 EQ Power+

Post


Shakeman
Shakeman
51
Joined: Mon Mar 21, 2011 12:31 pm
Location: UK

Re: Mercedes AMG F1 W09 EQ Power+

Post

GoPros and gaffer tape are the secret sauce.

User avatar
jagunx51
84
Joined: Sun Feb 23, 2014 11:06 am

Re: Mercedes AMG F1 W09 EQ Power+

Post

CBeck113 wrote:
Thu Feb 22, 2018 12:43 pm
They mounted the front suspension backwards :D
But in all seriousness, that is not a naturally stable geometry - you usually drag the wheel behind you. I can't wait for the driver feedback on this, I can imagine the setup of the car to be very difficult. Otherwise a very nice evolution, they are making the most from their investment leading into the new engine formula.
perhaps related with 'forward swept wing' aerodynamics, :?: :?:

............!!!!

Manoah2u
Manoah2u
397
Joined: Sun Feb 24, 2013 1:07 pm

Re: Mercedes W09 Speculation Thread

Post

1. nose ; much thinner
2. engine cover; much thinner
3. huge undercut, huge floor :shock:
4. super interesting 'ducts' from the nose to the floor, looks crazy cool
5. airbox looks interesting
6. camera pod housings are crazy cool engineered!
7. rear crash structure has a similar 'wing' shape on it like the alfa romeo has
Dumpster sounds so much more classy. It's the diamond of the cesspools.
