Halo structure

Post

Having viewed the Zhou incident, I wonder if the halo has a metal sub-structure? It looks like there is a frame fabricated from clamshell pieces. Maybe stampings that are welded together.

Brian

Just_a_fan
Just_a_fan
561
Joined: Sun Jan 31, 2010 7:37 pm

Re: Halo structure

Post

The halo is titanium with the teams applying carbon fairing pieces over it for aero purposes.
Turbo says "Dumpster sounds so much more classy. It's the diamond of the cesspools." oh, and "The Dutch fans are drunk. Maybe"

johnny comelately
johnny comelately
79
Joined: Thu Apr 09, 2015 11:55 pm
Location: Australia

Re: Halo structure

Post


User avatar
RicME85
52
Joined: Thu Feb 09, 2012 12:11 pm
Location: Derby

Re: Halo structure

Post

hardingfv32 wrote:
Mon Jul 04, 2022 6:59 pm
Having viewed the Zhou incident, I wonder if the halo has a metal sub-structure? It looks like there is a frame fabricated from clamshell pieces. Maybe stampings that are welded together.

Brian
This is Lance Stroll's car after his Bahrain 2020 roll. You can see the inner structure and the carbon outer fairing that gives it more shape. Look at the F2 and F3 cars, you can see the halo without the fairing, its just painted metal, the fixing to the cockpit front is also uncovered and visible.


User avatar
RicME85
52
Joined: Thu Feb 09, 2012 12:11 pm
Location: Derby

Re: Halo structure

Post

hardingfv32 wrote:
Mon Jul 04, 2022 6:59 pm
...

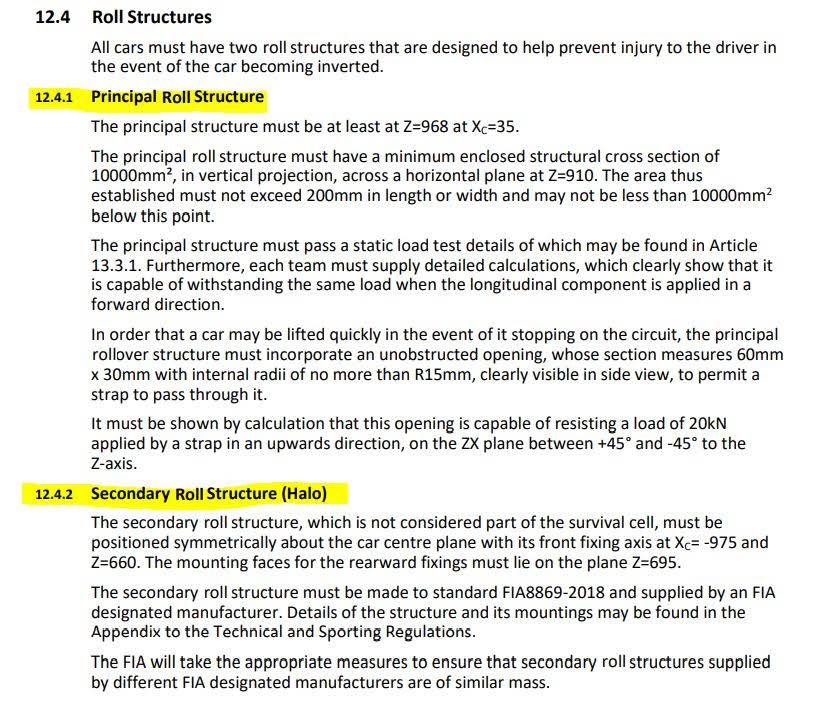

Another for you...the latest tech breakdown on F1TV with Albert Fabrega and Will Buxton shows the halo structure
